4. Learning an MDP using Active-BW

python file prism model for the grid

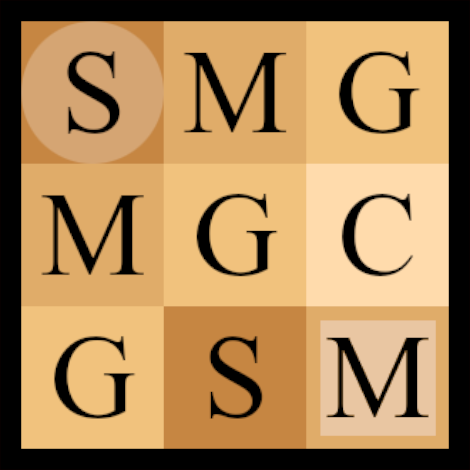

For this example, we will learn the grid world model depicted below using the active learning extension introduced this paper.

../_images/grid_3x3.png

We start in the top-left cell and our destination is the bottom-right one. We can move in any of the four directions North, South, East and West. We may make errors in movement, e.g. move south west instead of south with an error probability depending on the target terrain.

This model is form this paper.

Loading the original model from a Prism file

The original model is described in a Prism file. Let’s first load it.

>>> import jajapy as ja
>>> actions = list('nsew')
>>> labels = list("SMGCW")+["GOAL"]
>>> original_model = ja.loadPrism('materials/grid_3x3.sm')
>>> original_model.actions = actions # otherwise the actions are a0, a1, etc...

The last line matters: in fact, the actions name are lost in the process, and replaced by a0, a1, a2, a3. This problem will be (hopefully) solved in the next releases.

You may notice, if you try this on your machine, that the command loadPrism clears the terminal. The reason is that loading a Prism file causes many warnings/errors prints even if, at the end, everything went well (yes, I know it is hard to believe, but trust me). Hence, to avoid panic, the command clear the terminal and the user is serene.

Generating the training set

We can now generate the training. However, since MDPs are non-deterministic models, we need a scheduler to resolve the non-deterministic choices. We will use here an uniform scheduler.

Here, we generate a training set with 1,000 traces of length 10.

>>> # We generate 1000 sequences of 10 observations
>>> # using an uniform scheduler to resolve the non-deterministic choices.
>>> training_set = original_model.generateSet(1000,10,scheduler=ja.UniformScheduler(actions))

Generating the initial hypothesis

The system under learning contains 16 states, and only 6 labels. Hence, if we let Jajapy generate a random MDP with 16 states for the training set, the first 6 states will be labeled with S, C, M, G, W and GOAL, and the 10 remaining will be labeled randomly. Hence, we could possibly have 11 states labeled with GOAL and only one with W, which is far away from what we have in the system under learning.

Here, we will first randomly generate our initial hypothesis, and then modify its labelling to have an initial hypothesis closer to the system under learning.

>>> initial_hypothesis = ja.MDP_random(nb_states=16,labelling=labels,actions=actions,random_initial_state=False)
WARNING: the size of the labelling is lower than the number of states. The labels for the last states will be chosen randomly.
>>> initial_hypothesis.labelling = original_model.labelling

Note

Before doing that, we must be sure that the init label is at the same index in both initial_hypothesis.labelling and original_model.labelling, and that they both have the same length. Here, we now that our initial hypothesis has as many state as the original model, thus the two list have the same length. And we know that the init label is the last one in these two lists.

Active Learning

The active learning starts by one BW execution on the given training set and initial hypothesis, and then executes several BW executions (nb_iterations=10) on the current hypothesis and a training set containing training_set plus a number of sequences (here nb_sequences=100) generated by the original model with the active learning scheduler described in the paper. In practice, for each new sequence, it uses the active learning scheduler with probability 0.9 and an uniform scheduler with probability 0.1. These probabilities can be changed by setting the parameter epsilon_greedy of the fit method. The length of the additional traces can be set using the sequence_length parameter.

>>> output_model_active  = ja.Active_BW_MDP().fit(training_set, lr=0, nb_iterations=10,
                                                sul=original_model,nb_sequences=100,initial_model=initial_hypothesis)
Learning an MDP...
|████████████████████████████████████████| (!) 50 in 1:22.4 (0.61/s)

---------------------------------------------
Learning finished
Iterations:        50
Running time:  82.44685
---------------------------------------------

Learning an MDP...
Active iteration 1/10:  |████████████████████████████████████████| (!) 10 in 17.6s (0.57/s)
Learning an MDP...
Active iteration 2/10:  |████████████████████████████████████████| (!) 3 in 5.2s (0.57/s)
Learning an MDP...
Active iteration 3/10:  |████████████████████████████████████████| (!) 3 in 5.8s (0.52/s)
Learning an MDP...
Active iteration 4/10:  |████████████████████████████████████████| (!) 4 in 8.2s (0.49/s)
Learning an MDP...
Active iteration 5/10:  |████████████████████████████████████████| (!) 23 in 49.6s (0.46/s)
Learning an MDP...
Active iteration 6/10:  |████████████████████████████████████████| (!) 3 in 6.8s (0.44/s)
Learning an MDP...
Active iteration 7/10:  |████████████████████████████████████████| (!) 4 in 9.3s (0.43/s)
Learning an MDP...
Active iteration 8/10:  |████████████████████████████████████████| (!) 3 in 7.3s (0.41/s)
Learning an MDP...
Active iteration 9/10:  |████████████████████████████████████████| (!) 5 in 12.8s (0.39/s)
Learning an MDP...
Active iteration 10/10:  |████████████████████████████████████████| (!) 3 in 8.1s (0.37/s)

---------------------------------------------
Learning finished
Iterations:        111
Running time:  225.197524
---------------------------------------------

Model checking and evaluation

We can now model check the output model and compare the results with the original one.

>>> import stormpy
>>> formulas = ["Pmax=? [ F<=3 \"GOAL\"  ]","Pmax=? [ !(\"C\"|\"W\") U<=8\"GOAL\" ]", "Pmax=? [ F<=5 \"GOAL\"  ]"]
>>> original_model = ja.jajapyModeltoStormpy(original_model)
>>> for formula in formulas:
>>>     properties = stormpy.parse_properties(formula)
>>>     result_original = stormpy.check_model_sparse(original_model, properties[0])
>>>     result_original = result_original.at(original_model.initial_states[0])
>>>     result_output_active = stormpy.check_model_sparse(output_model_active, properties[0])
>>>     result_output_active = result_output_active.at(output_model_active.initial_states[0])
>>>     print(formula,'in the original model:',str(result_original))
>>>     print(formula,'in the output model active:',str(result_output_active))
>>>     print()
Pmax=? [ F<=3 "GOAL"  ] in the original model: 0.049999999999999996
Pmax=? [ F<=3 "GOAL"  ] in the output model active: 0.04523053893018776

Pmax=? [ !("C"|"W") U<=6"GOAL" ] in the original model: 0.6291224999999998
Pmax=? [ !("C"|"W") U<=6"GOAL" ] in the output model active: 0.6265688263898588

Pmax=? [ F<=5 "GOAL"  ] in the original model: 0.7247999999999999
Pmax=? [ F<=5 "GOAL"  ] in the output model active: 0.7378293787258042
